Hadoop 环境配置

修改网络配置

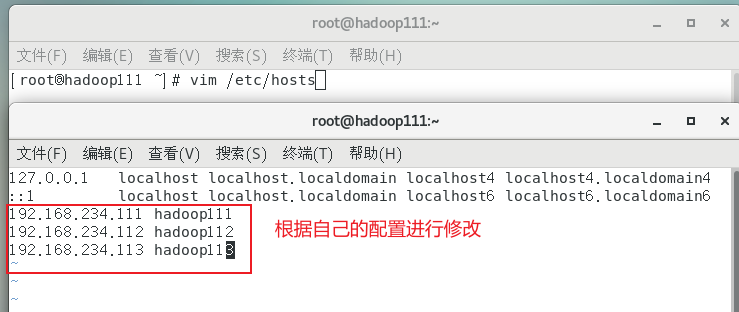

  • 修改hosts image-20240320103357773

虚拟机安装 JDK

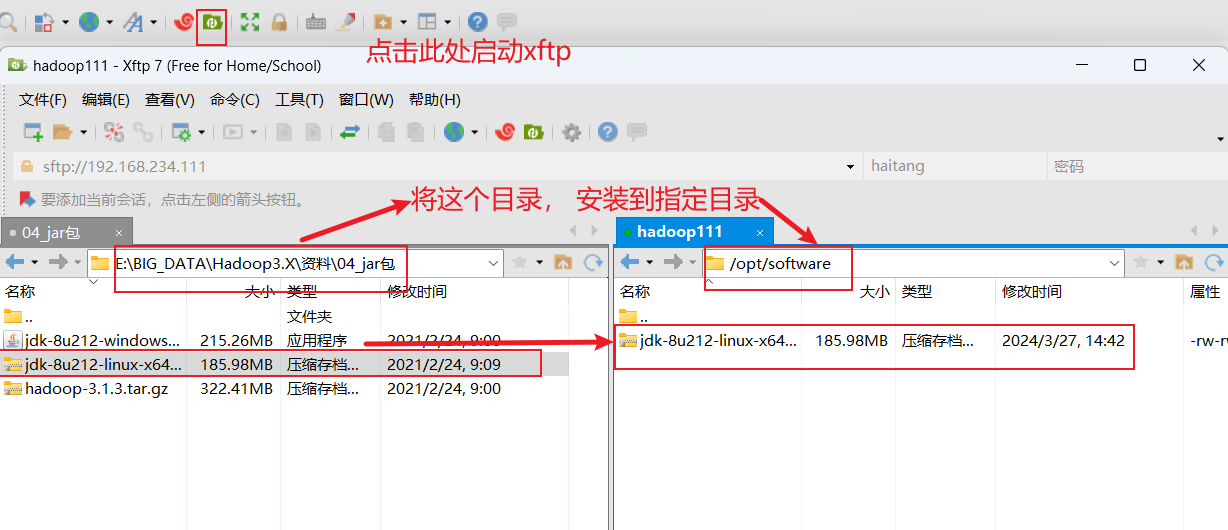

  • 用 XShell 传输工具将 JDK 导入到 opt 目录下面的 software 文件夹下面 image-20240327144635195

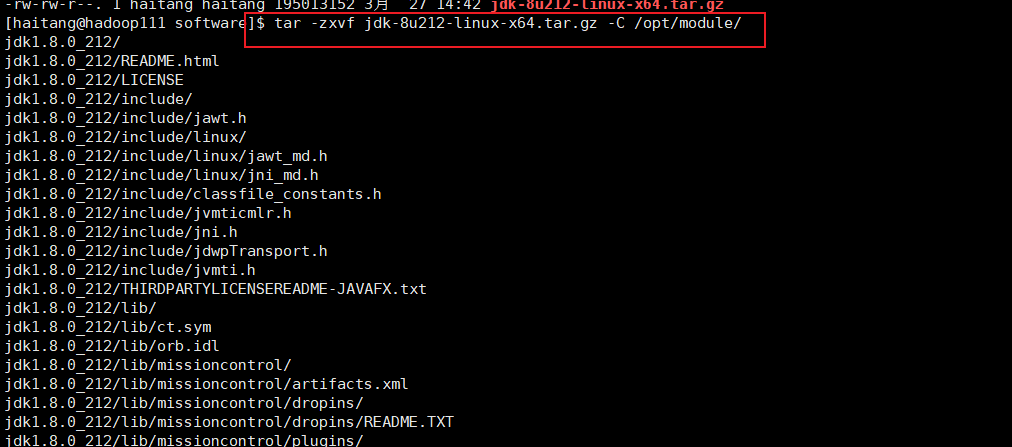

  • 解压 JDK 到 /opt/module 目录下

    1

    [haitng@hadoop111 software]$ tar -zxvf jdk-8u212-linux-x64.tar.gz -C /opt/module/

    image-20240327144952870

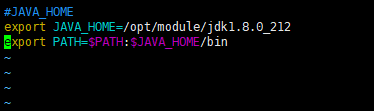

  • 配置 JDK 环境变量

    1. 新建 /etc/profile.d/my_env.sh 文件， 并添加环境变量
    1
2
3
4
5
6

    [haitng@hadoop111 software]$ sudo vim /etc/profile.d/my_env.sh

# 文件内输入以下内容
#JAVA_HOME
export JAVA_HOME=/opt/module/jdk1.8.0_212
export PATH=$PATH:$JAVA_HOME/bin

    image-20240327152154145

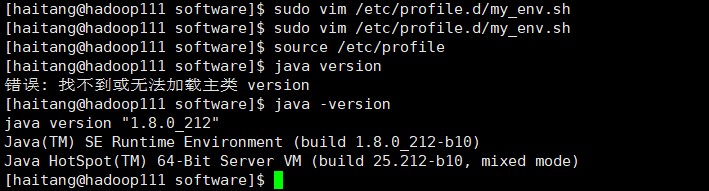

    1. source 一下 /etc/profile 文件，让新的环境变量 PATH 生效
    1
2

    [haitng@hadoop111 software]$ source /etc/profile
[haitng@hadoop111 software]$ java -version

    image-20240327150111362

克隆虚拟机(配置集群)

克隆两台虚拟机（以hadoop112 为例， hadoop113 同理）

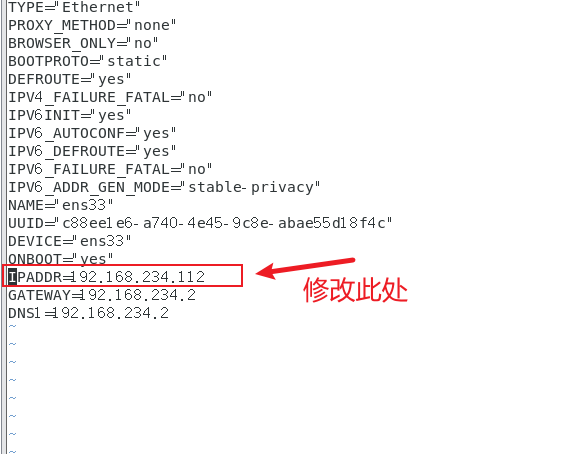

  • 修改 hadoop112 的网络 IP
    1

    [haitng@hadoop112 ~]$ sudo vim /etc/sysconfig/network-scripts/ifcfg-ens33
    image-20240327162005401

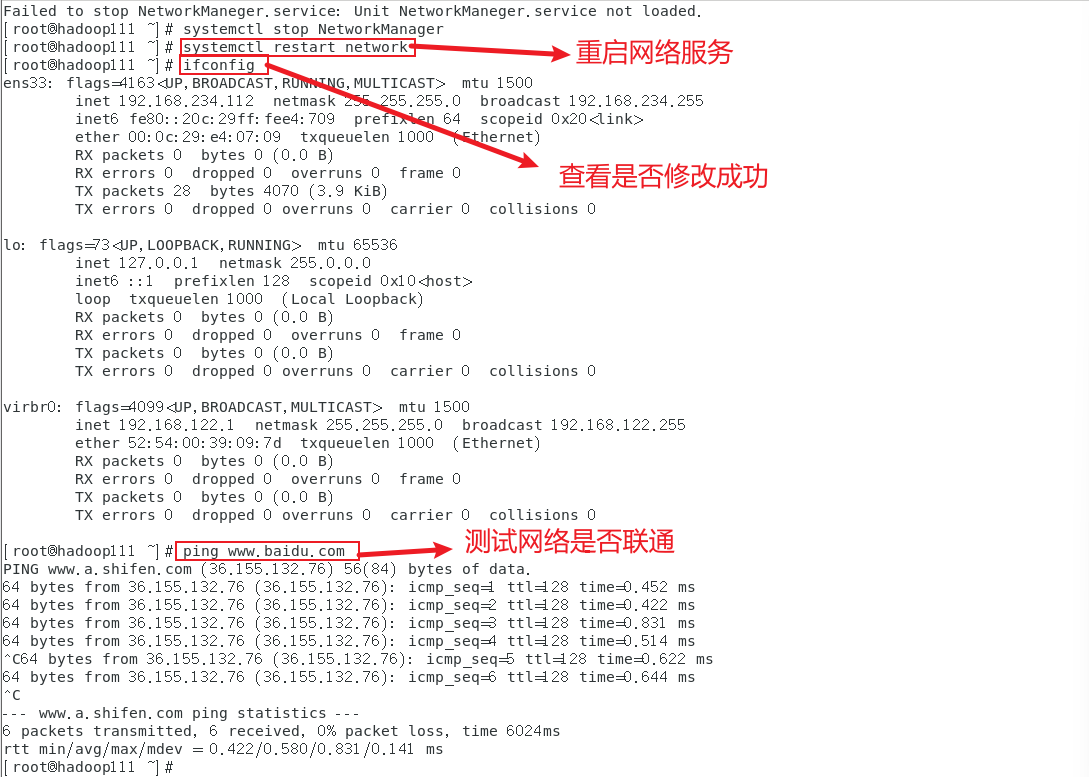

  • 重启网络服务，并测试是否成功
    1
2
3
4
5
6
7
8

    # 重启网络服务
[haitng@hadoop112 ~]$ systemctl restart network

# 查看网络 IP
[haitng@hadoop112 ~]$ ifconfig

# 测试网络
[haitng@hadoop112 ~]$ ping www.baidu.com
    image-20240327162534662
  • 修改主机名
    1

    [haitng@hadoop112 ~]$ vim /etc/hostname
    image-20240327162825606
  • hadoop 113同上述操做

配置免密登录

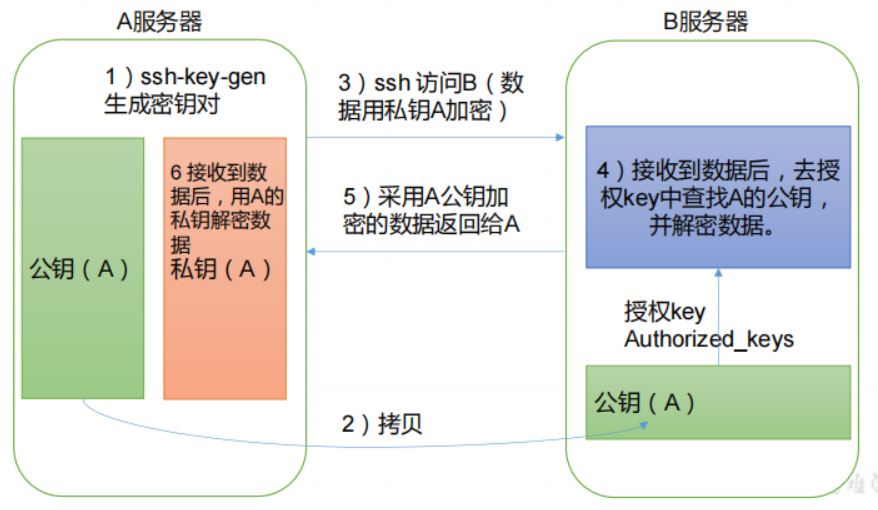

  • 免密登录原理 image-20240328193132641

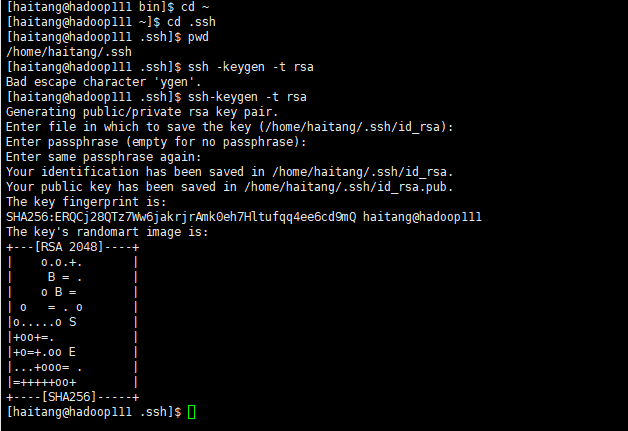

  • 生成公钥和私钥

    1
2
3
4
5
6

    # 回到家目录
[haitng@hadoop111 ~]$ cd ~
# 进入 .ssh 文件
[haitng@hadoop111 ~]$ cd .ssh
# 输入下面命令, 并回车三次, 然后生成文件 id_rsa（私钥）、id_rsa.pub（公钥）
[haitng@hadoop111 .ssh]$ ssh-keygen -t rsa

    image-20240328182021984

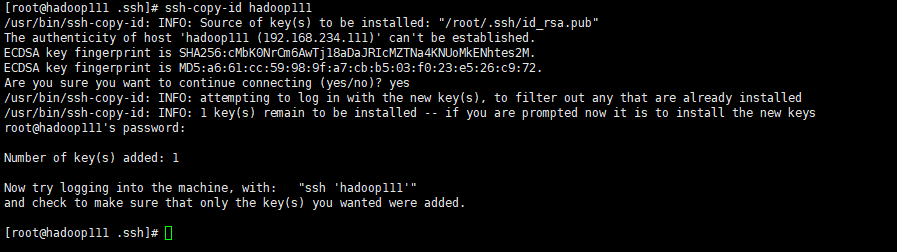

  • 将公钥拷贝到要免密登录的目标机器上

    1
2
3

    [haitng@hadoop111 .ssh]$ ssh-copy-id haitang111
[haitng@hadoop111 .ssh]$ ssh-copy-id haitang112
[haitng@hadoop111 .ssh]$ ssh-copy-id haitang113
    • 需要在 hadoop112 上采用 haitang 账号配置一下无密登录到 hadoop111、hadoop112、hadoop113 服务器上;
    • 还需要在 hadoop113 上采用 haitang 账号配置一下无密登录到 hadoop111、hadoop112、hadoop113 服务器上;
    • 还需要在 hadoop111 上采用 root 账号，配置一下无密登录到 hadoop111、hadoop112、hadoop113 服务器上。 image-20240328182616509

编写常用脚本

  • 编写集群分发脚本 xsync

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

    # 返回家目录
[haitng@hadoop111 ~]$ cd ~
# 查看当前环境变量
[haitng@hadoop111 ~]$ echo $PATH

# 在家目录创建 bin 文件夹
[haitng@hadoop111 ~]$ mkdir bin
[haitng@hadoop111 ~]$ cd bin

# 创建集群分发脚本 xsync
[haitng@hadoop111 bin]$ vim xsync

#!/bin/bash
#1. 判断参数个数
if [ $# -lt 1 ]
then
echo Not Enough Arguement!
exit;
fi

#2. 遍历集群所有机器
for host in hadoop111 hadoop112 hadoop113
do
echo ==================== $host ====================
#3. 遍历所有目录，挨个发送
for file in $@
do
    #4. 判断文件是否存在
    if [ -e $file ]
        then
            #5. 获取父目录
            pdir=$(cd -P $(dirname $file); pwd)
            #6. 获取当前文件的名称
            fname=$(basename $file)
            ssh $host "mkdir -p $pdir"
            rsync -av $pdir/$fname $host:$pdir
        else
            echo $file does not exists!
    fi
done
done

# 修改脚本 xsync 具有执行权限
[haitng@hadoop111 bin]$ chmod +x xsync

# 将脚本复制到/bin 中，以便全局调用
[haitng@hadoop111 bin]$ sudo cp xsync /bin/

  • Hadoop 集群启停脚本（包含 HDFS，Yarn，Historyserver）：myhadoop.sh

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

    # 返回家目录下的bin目录
[haitng@hadoop111 ~]$ cd ~
[haitng@hadoop111 ~]$ cd bin

# 创建集群启停脚本 myhadoop.sh
[haitng@hadoop111 bin]$ vim myhadoop.sh

# 脚本内容如下
#!/bin/bash
if [ $# -lt 1 ]
then
echo "No Args Input..."
exit ;
fi
case $1 in
"start")
echo " =================== 启动 hadoop 集群 ==================="
echo " --------------- 启动 hdfs ---------------"
ssh hadoop111 "/opt/module/hadoop-3.1.3/sbin/start-dfs.sh"
echo " --------------- 启动 yarn ---------------"
ssh hadoop112 "/opt/module/hadoop-3.1.3/sbin/start-yarn.sh"
echo " --------------- 启动 historyserver ---------------"
ssh hadoop111 "/opt/module/hadoop-3.1.3/bin/mapred --daemon start historyserver"
;;
"stop")
echo " =================== 关闭 hadoop 集群 ==================="
echo " --------------- 关闭 historyserver ---------------"
ssh hadoop111 "/opt/module/hadoop-3.1.3/bin/mapred --daemon stop historyserver"
echo " --------------- 关闭 yarn ---------------"
ssh hadoop112 "/opt/module/hadoop-3.1.3/sbin/stop-yarn.sh"
echo " --------------- 关闭 hdfs ---------------"
ssh hadoop111 "/opt/module/hadoop-3.1.3/sbin/stop-dfs.sh"
;;
*)
echo "Input Args Error..."
;;
esac

# 修改脚本 myhadoop.sh 具有执行权限
[haitng@hadoop111 bin]$ chmod +x myhadoop.sh

  • 查看三台服务器 Java 进程脚本：jpsall

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

    # 返回家目录下的bin目录
[haitng@hadoop111 ~]$ cd ~
[haitng@hadoop111 ~]$ cd bin

# 创建 java 进程脚本：jpsall
[haitng@hadoop111 bin]$ vim jpsall

#!/bin/bash
for host in hadoop111 hadoop112 hadoop113
do
echo =============== $host ===============
ssh $host jps
done

# 修改脚本 jpsall 具有执行权限
[haitng@hadoop111 bin]$ chmod +x jpsall

虚拟机安装 Hadoop

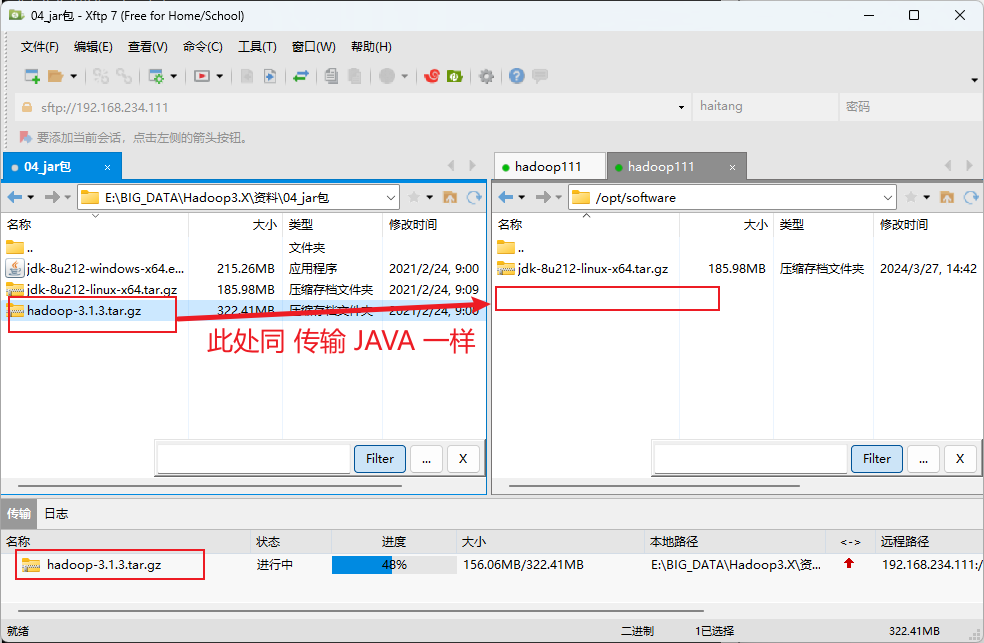

  • 用 XShell 文件传输工具将 hadoop-3.1.3.tar.gz 导入到 opt 目录下面的 software 文件夹下面 image-20240327151713731

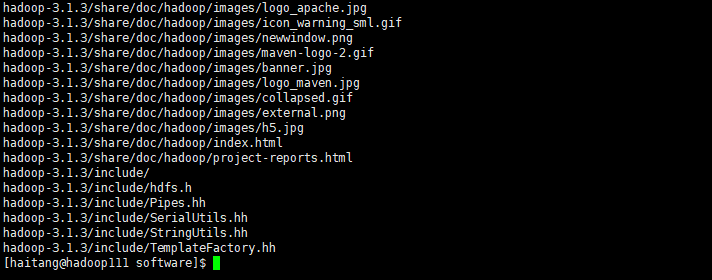

  • 解压安装文件到/opt/module 下面

    1

    tar -zxvf hadoop-3.1.3.tar.gz -C /opt/module/

    image-20240327151958123

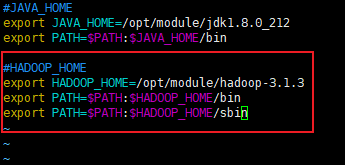

  • 配置 Hadoop 环境变量

    1. 新建 /etc/profile.d/my_env.sh 文件， 并添加环境变量
    1
2
3
4
5
6

    sudo vim /etc/profile.d/my_env.sh

#HADOOP_HOME
export HADOOP_HOME=/opt/module/hadoop-3.1.3
export PATH=$PATH:$HADOOP_HOME/bin
export PATH=$PATH:$HADOOP_HOME/sbin

    image-20240327152437060

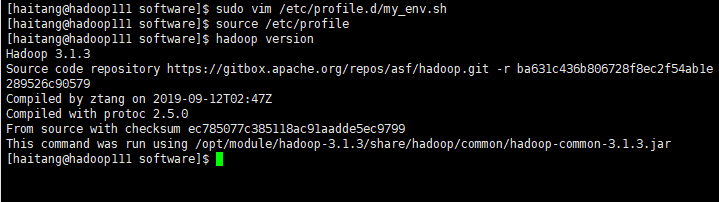

    2. source 一下 /etc/profile 文件，让新的环境变量 PATH 生效

    1
2

    source /etc/profile
hadoop version

    image-20240327152553565

  • 配置集群文件 此处同时配置了历史服务器与历史服务器

    1. 核心配置文件(core-site.xml)
     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

    vim core-site.xml

<?xml version="1.0" encoding="UTF-8"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License. See accompanying LICENSE file.
-->

<!-- Put site-specific property overrides in this file. -->

<configuration>
    <!--指定NameNode的地址 -->
    <property>
        <name>fs.defaultFS</name>
        <value>hdfs://hadoop111:8020</value>
    </property>

    <!-- 指定hadoop数据的存储目录 -->
    <property>
        <name>hadoop.tmp.dir</name>
        <value>/opt/module/hadoop-3.1.3/data</value>
    </property>

    <!-- 配置HDFS网页登录使用的静态用户为haitang -->
    <property>
        <name>hadoop.http.staticuser.user</name>
        <value>haitang</value>
    </property>
</configuration>
    1. HDFS 配置文件(hdfs-site.xml)
     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

    vim hdfs-site.xml

<?xml version="1.0" encoding="UTF-8"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License. See accompanying LICENSE file.
-->

<!-- Put site-specific property overrides in this file. -->

<configuration>
<!-- nn web端访问地址-->
<property>
    <name>dfs.namenode.http-address</name>
    <value>hadoop111:9870</value>
</property>
<!-- 2nn web端访问地址-->
<property>
    <name>dfs.namenode.secondary.http-address</name>
    <value>hadoop113:9868</value>
</property>
</configuration>
    1. YARN 配置文件(yarn-site.xml)
     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

    vim yarn-site.xml




<?xml version="1.0"?>
<!--
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS
IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License. See accompanying LICENSE file.
-->
<configuration>

<!-- Site specific YARN configuration properties -->
<!-- 指定MR走shuffle -->
<property>
    <name>yarn.nodemanager.aux-services</name>
    <value>mapreduce_shuffle</value>
</property>

<!-- 指定ResourceManager的地址-->
<property>
    <name>yarn.resourcemanager.hostname</name>
    <value>hadoop112</value>
</property>

<!-- 环境变量的继承 -->
<property>
    <name>yarn.nodemanager.env-whitelist</name>
    <value>JAVA_HOME,HADOOP_COMMON_HOME,HADOOP_HDFS_HOME,HADOOP_CO
NF_DIR,CLASSPATH_PREPEND_DISTCACHE,HADOOP_YARN_HOME,HADOOP_MAP
RED_HOME</value>
</property>
<!-- 开启日志聚集功能 -->
<property>
    <name>yarn.log-aggregation-enable</name>
    <value>true</value>
</property>
<!-- 设置日志聚集服务器地址 -->
<property>
    <name>yarn.log.server.url</name>
    <value>http://hadoop111:19888/jobhistory/logs</value>
</property>
<!-- 设置日志保留时间为7天 -->
<property>
    <name>yarn.log-aggregation.retain-seconds</name>
    <value>604800</value>
</property>
</configuration>
    1. MapReduce 配置文件(mapred-site.xml)
     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

    vim mapred-site.xml


<?xml version="1.0"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License. See accompanying LICENSE file.
-->

<!-- Put site-specific property overrides in this file. -->

<configuration>
<!-- 指定MapReduce程序运行在Yarn上 -->
<property>
    <name>mapreduce.framework.name</name>
    <value>yarn</value>
</property>
<!-- 历史服务器端地址 -->
<property>
    <name>mapreduce.jobhistory.address</name>
    <value>hadoop111:10020</value>
</property>
<!-- 历史服务器web端地址 -->
<property>
    <name>mapreduce.jobhistory.webapp.address</name>
    <value>hadoop111:19888</value>
</property>
</configuration>
    1. 配置workers
    1
2
3
4
5

    vim workers

hadoop111
hadoop112
hadoop113

启动集群

  • 如果集群是第一次启动，需要在 hadoop111 节点格式化 NameNode 注意：格式化 NameNode，会产生新的集群 id，导致 NameNode 和 DataNode 的集群 id 不一致，集群找不到已往数据。如果集群在运行过程中报错，需要重新格式化 NameNode 的话，一定要先停止 namenode 和 datanode 进程，并且要删除所有机器的 data 和 logs 目录，然后再进行格式化。

    1

    hdfs namenode -format

  • 各个模块分开启动**/**停止（配置 ssh **是前提）

  • 启动/停止 HDFS

    1

    sbin/start-dfs.sh / sbin/stop-dfs.sh

  • 在配置了 ResourceManager 的节点（hadoop112）启动/停止 YARN

    1

    sbin/start-yarn.sh / sbin/stop-yarn.sh

  • 在 hadoop111 启动/停止历史服务器

    1

    mapred --daemon start historyserver / mapred --daemon stop historyserver

  • 各个服务组件逐一启动/停止

    • 分别启动/停止 HDFS 组件

      1

      hdfs --daemon start/stop namenode/datanode/secondarynamenode

    • 启动/停止 YARN

      1

      yarn --daemon start/stop resourcemanager/nodemanager
